Msd Power Grid Power Module – High-Efficiency Voltage Regulation Msd77643

Description

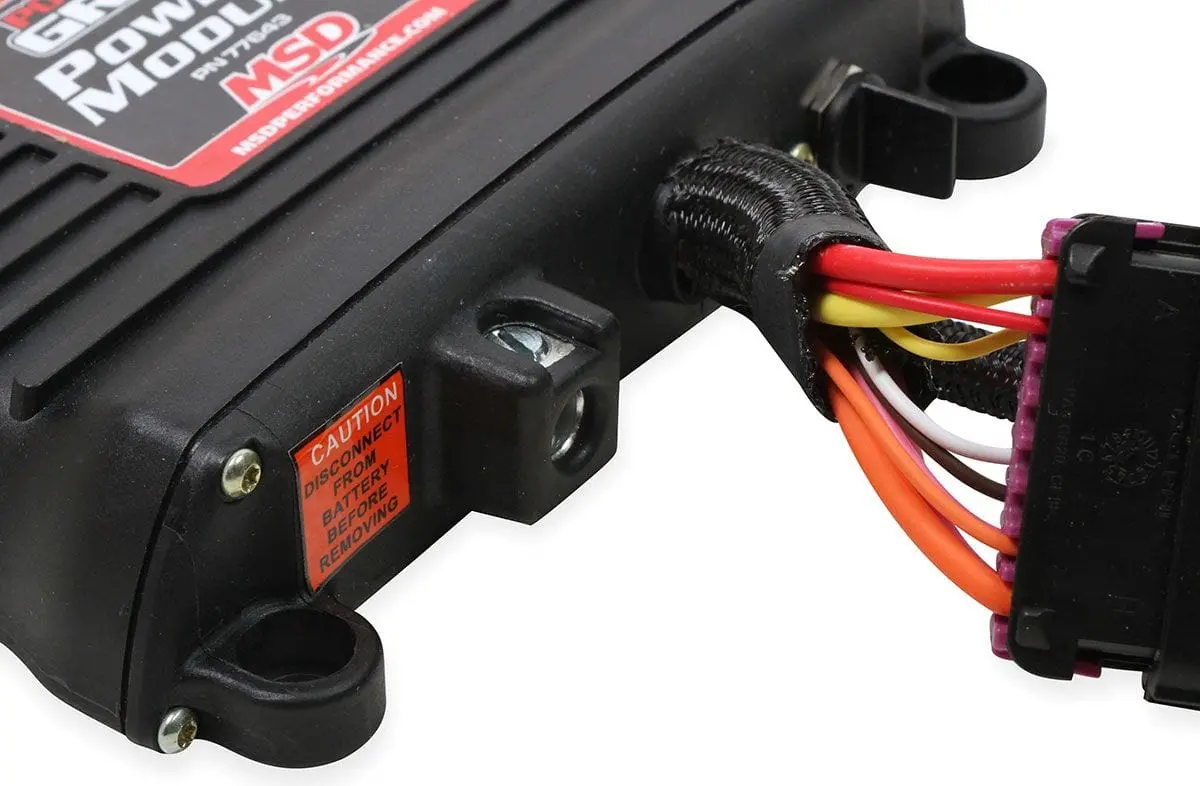

Power Grid Power Module

Black

MSD77643

D77643

The MSD Power Module is a fully programmable, four stage solid state relay that can handle up to 20 Amps of current per channel. The Power Module eliminates the need for electromechanical relays, fuses and timers.Outputs can be controlled independently or simultaneously, giving great flexibility. It can be configured as a digital output (i.e. ON/OFF) or as a Pulse Width Modulated output (i.e. PWM) with user-programmable frequencies up to 10 Kilohertz.Outputs can use Time, RPM or temperature to control fans, pumps, nitrous systems and much more.A High Speed Data Logger can be used to record all functions when paired with the MSD PN 7730 Power Grid.Features:Takes the place of 4 electromechanical relaysBuilt-in overcurrent protection, no fuses needed80 Amp capacity, 4 channels rated up to 20 Amps eachEach channel is controlled via input wires or as programmed in the MSDView softwareCan be used stand alone or with MSD Power Grid PN 7730Trigger signals can include power, ground, temperature, or timeData Acquisition available when used with MSD Power GridAvailable in Red (P/N 7764) or Black (P/N 77643)
